| Model NO. | PPGL |
| Standard | ASTM, JIS, GB, DIN, BS |
| Certification | ISO |
| Surface Treatment | Coated |
| Technique | Cold Rolled |
| Substrate | Galvanlume Steel Coil |
| Aluzinc Coating | Az30-150 |
| Material | Cglcc/Cglch, Dx51d/Dx52D |
| Coil ID | 508/610mm |
| Color | Any Ral Color or Client's Sample |
| Production Capacity | 70000 Tons/Year |

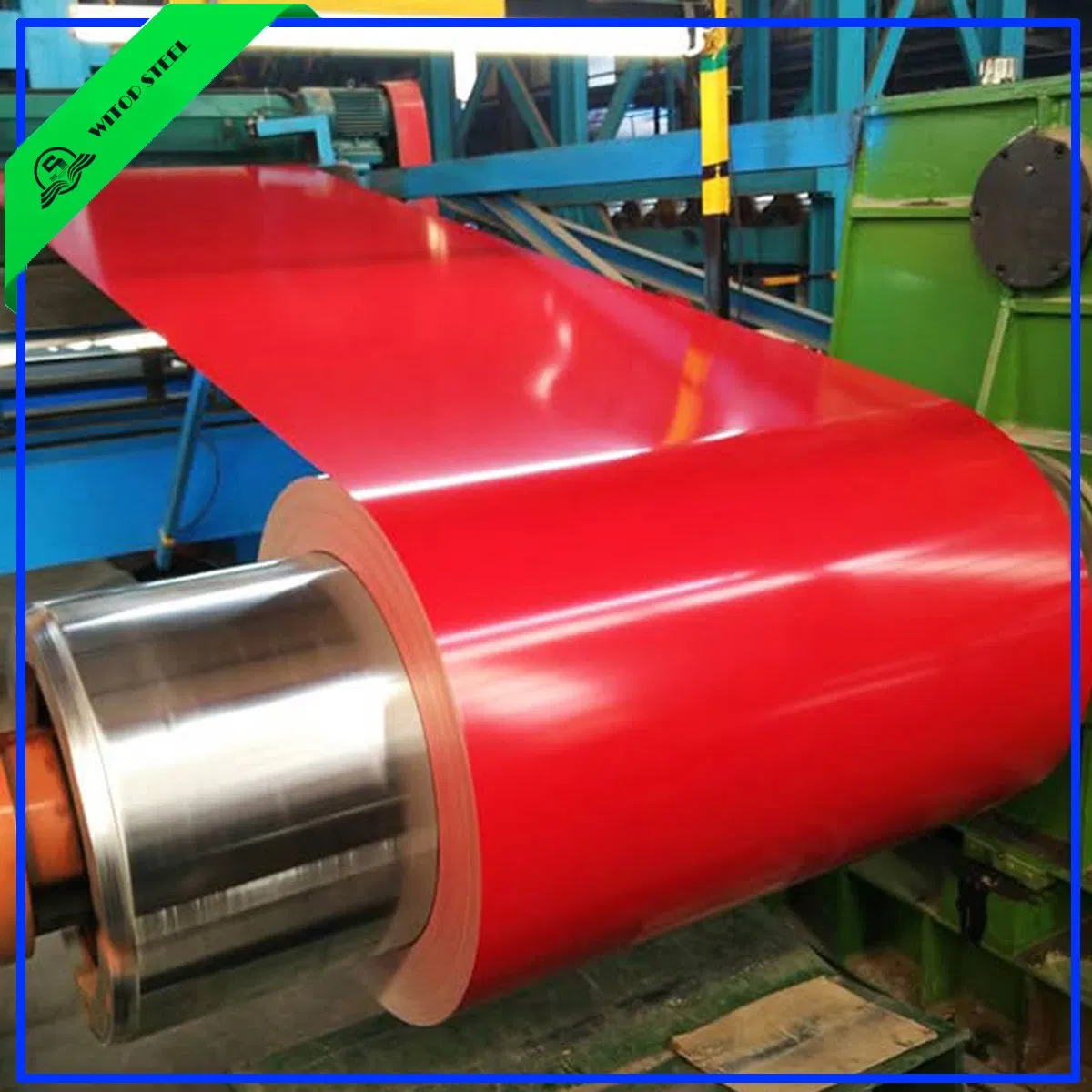

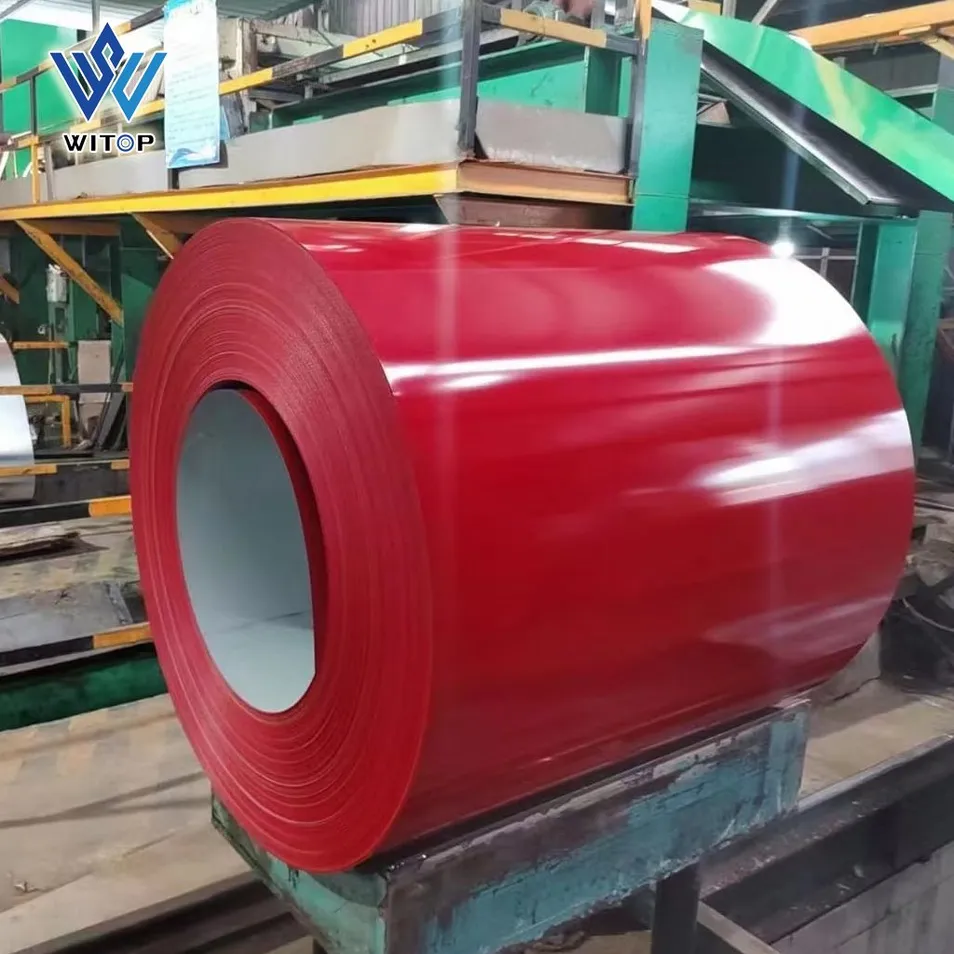

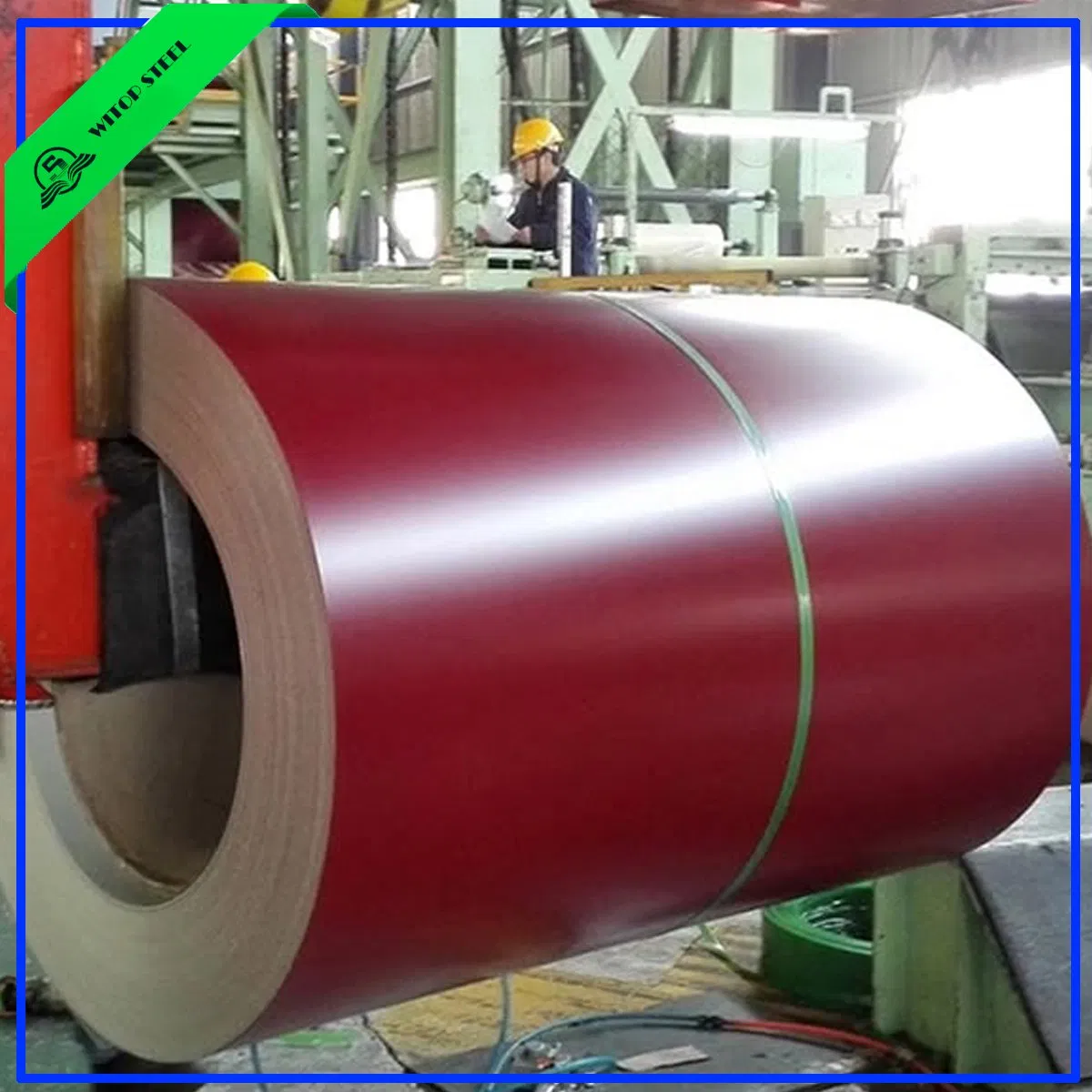

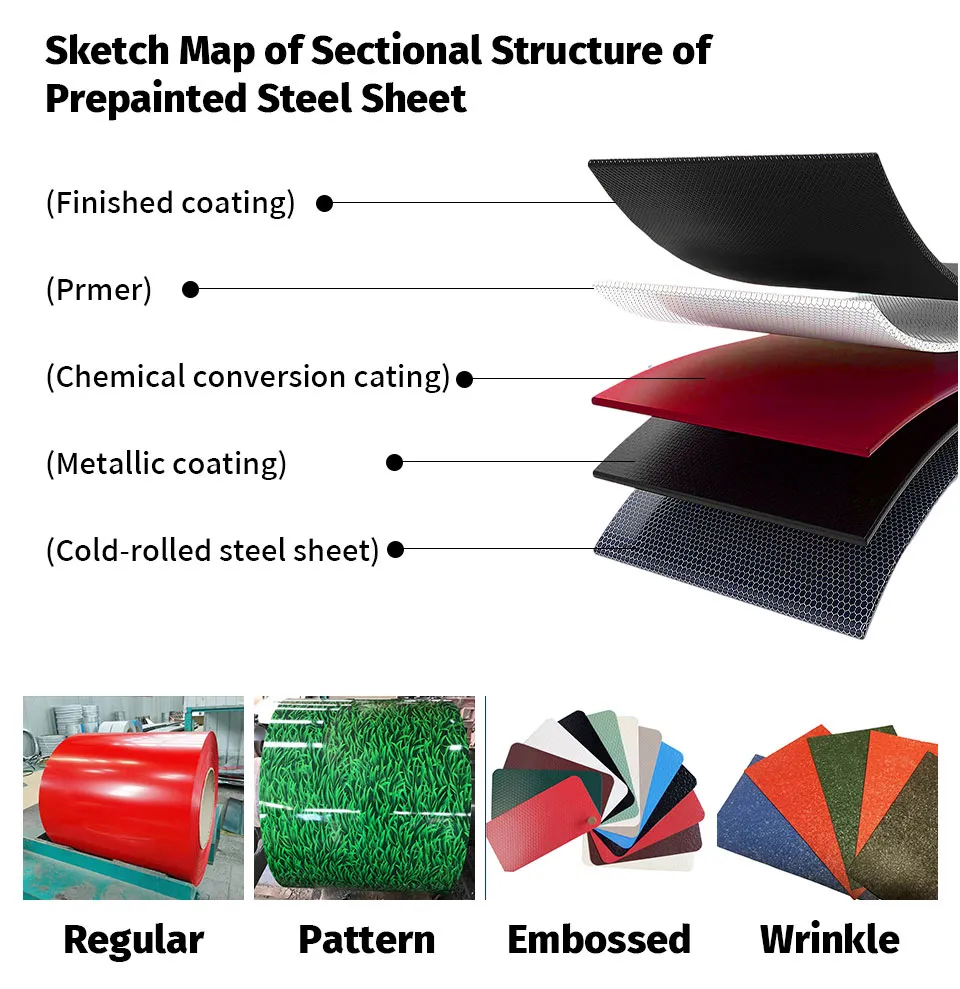

Prepainted Galvalume Steel Coil (PPGL) is a high-end material consisting of a top coating layer, primer, pre-treatment coating, and Al-Zn coating on a base metal sheet. It offers exceptional corrosion resistance—approximately 2 times longer service life compared to standard galvalume coils due to the dual protection of aluminum-zinc and the paint film.
| Technical Specification Sheet | |
|---|---|
| Grade | Commercial (CGLCC, DX51D), Deep Drawn (DX52D, FS), Structural (S280GD-S550GD) |

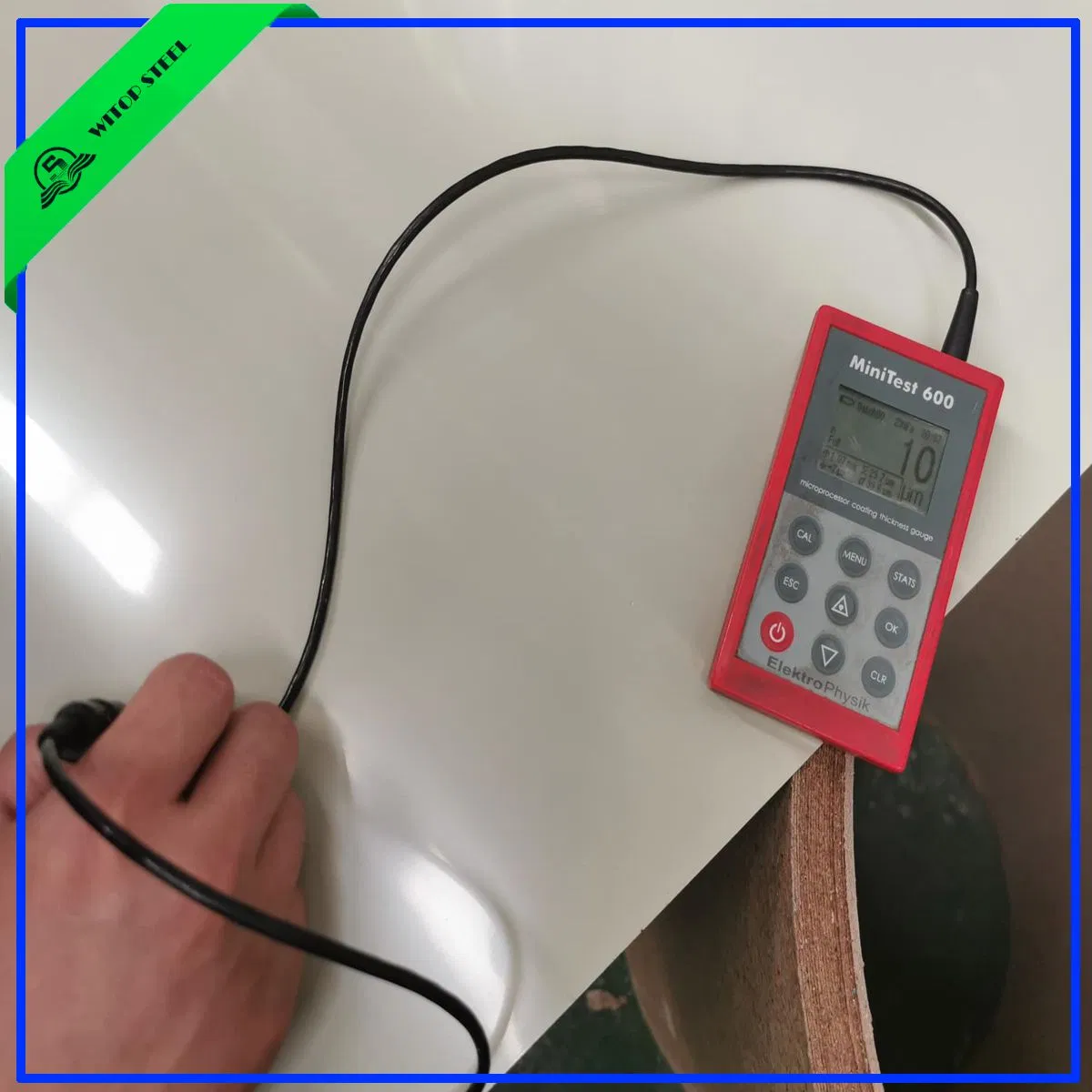

| Painting Film | Top: 10–30 μm | Back: 5-30 μm |
| Thickness | 0.12 - 2.00 mm |
| Width | 20 - 1250 mm |
| Surface Type | PVC Film, Wrinkle/Matt, Printed Surface |
| Hardness | Soft, Semi Hard, Full Hard (G550) |

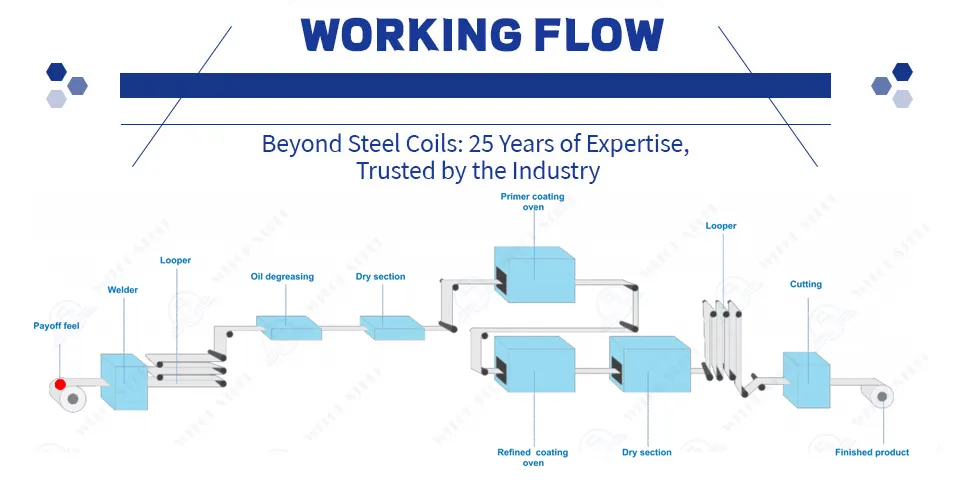

Manufacturing Steps:

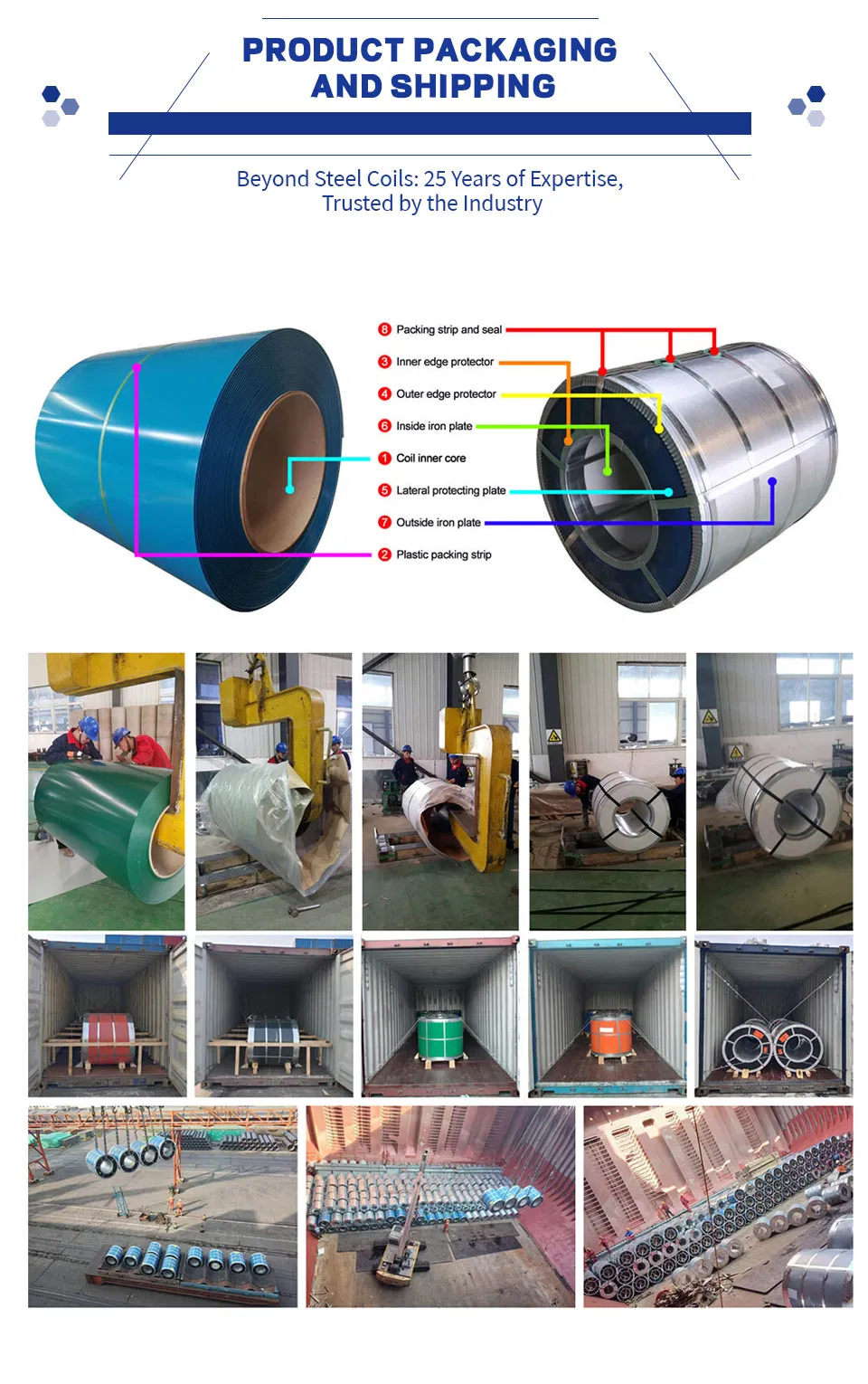

Standard export package includes 3 layers: anti-water craft paper, PVC plastic film, and a steel sheet outer cover (min 0.45mm). Secured with at least seven steel strapping strips. Desiccants are placed in the core and lateral sides to prevent moisture during bulk sea transportation.
