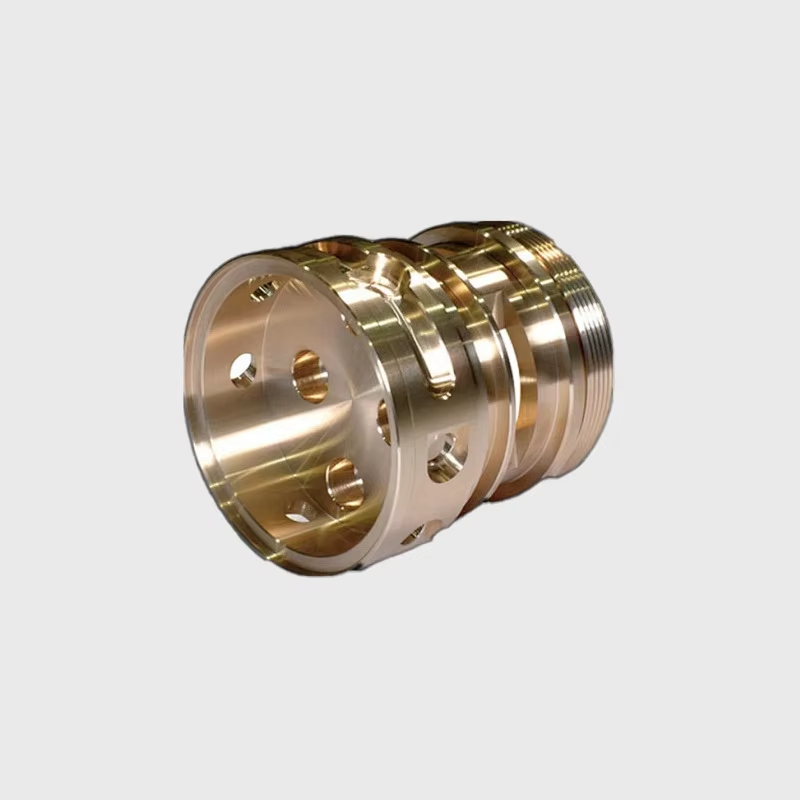

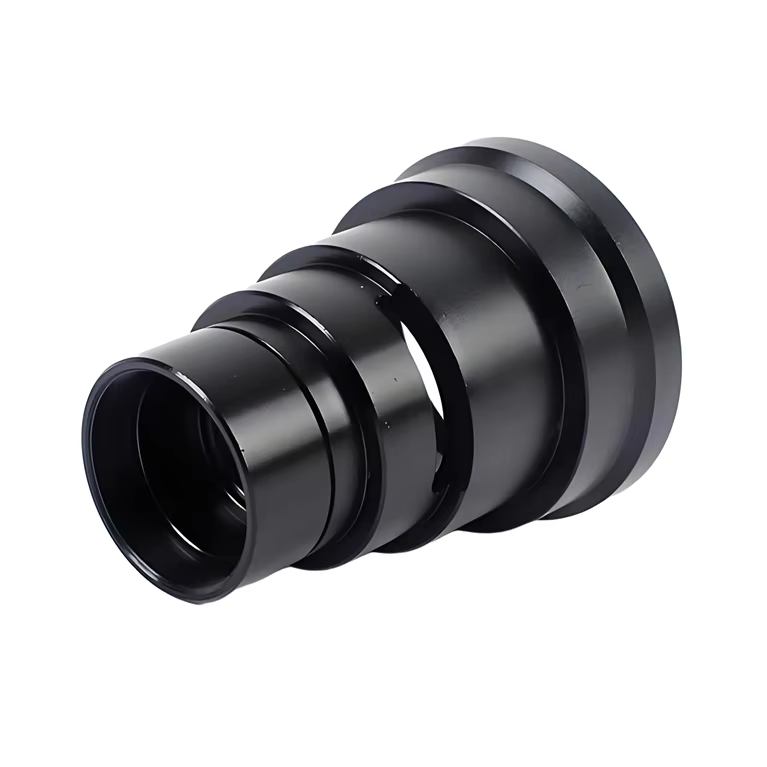

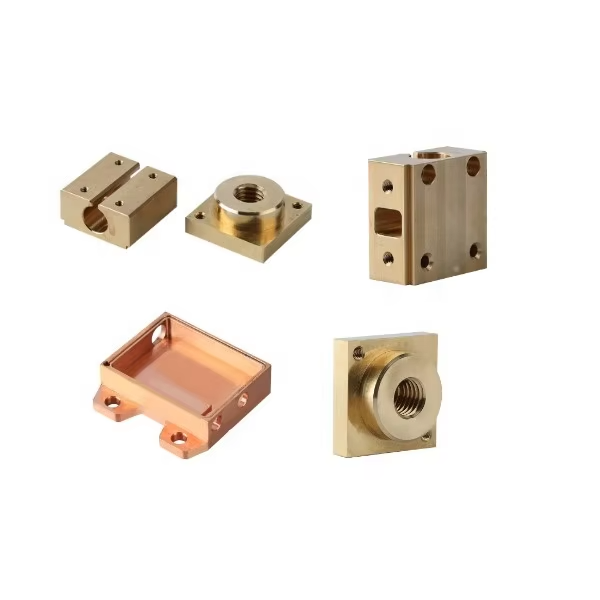

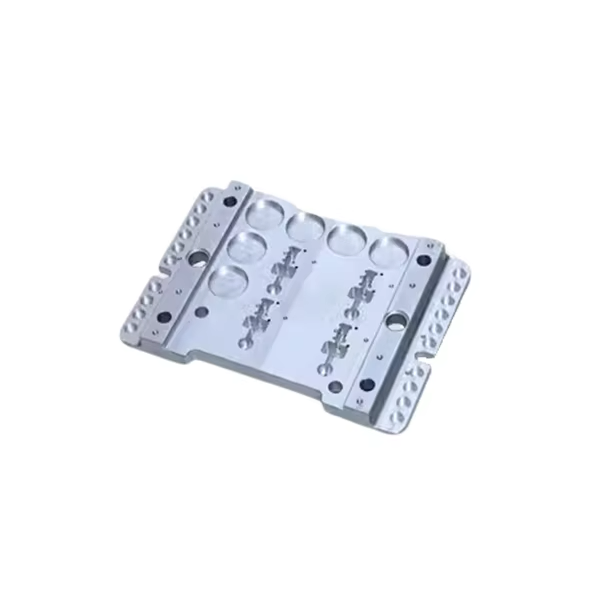

OEM Aluminum Anodized Products with CAD Drawings and ISO9001: 2015

Basic Specifications

Model NO.

MACH-0001

Surface Treatment

Anodizing

Production Type

Mass Production

Machining Method

CNC Machining

Material

Nylon, Steel, Plastic, Brass, Alloy, Copper, Aluminum, Iron

Drawing Format

STP, STEP, IGS, CAD, PDF, DWG

Certificate

ISO9001:2015

Process

CNC Turning, Milling, Lathe

Tolerance

0.01+/- 0.005mm

Roughness

Ra0.2-Ra3.2

QC Control

100% Inspection on Critical Dimensions

Production Capacity

10000/Week

Manufacturing Capabilities

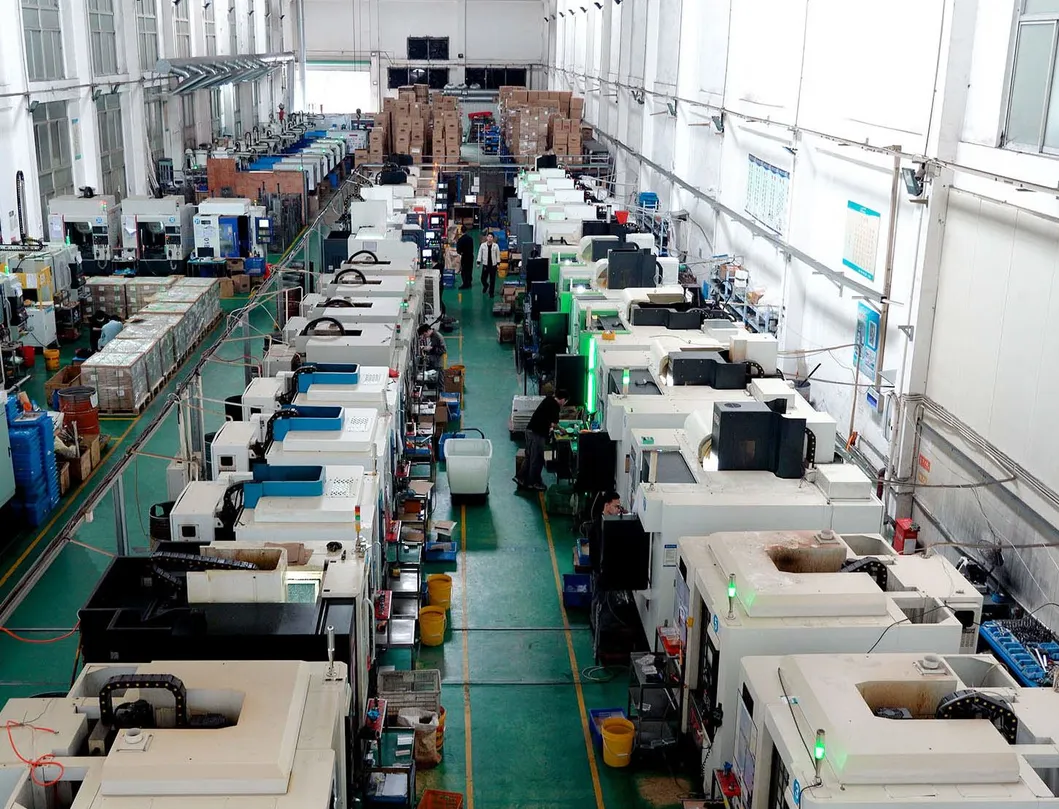

Premium CNC Machining Service

We present an extensive array of CNC machining services, embracing the intricacies of milling, turning, and grinding. Our cutting-edge machinery combined with the expertise of seasoned technicians empowers us to engage with a diverse spectrum of materials, including aluminum, steel, and plastics. We offer bespoke design and prototyping services, transforming conceptual visions into tangible realities.

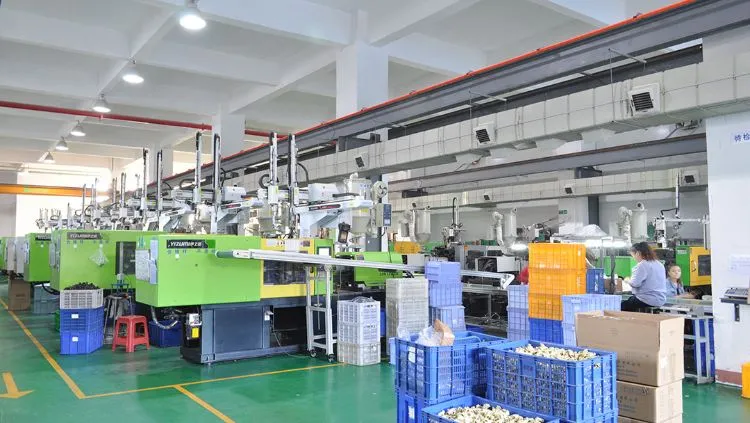

Innovative Injection Molding Service

Our custom injection molding service is meticulously crafted to furnish you with all-encompassing and intricate plastic parts solutions. From the initial stages of product design and mold development to mass production, we oversee each facet of injection molding, assuring that every step aligns seamlessly with personalized requirements.

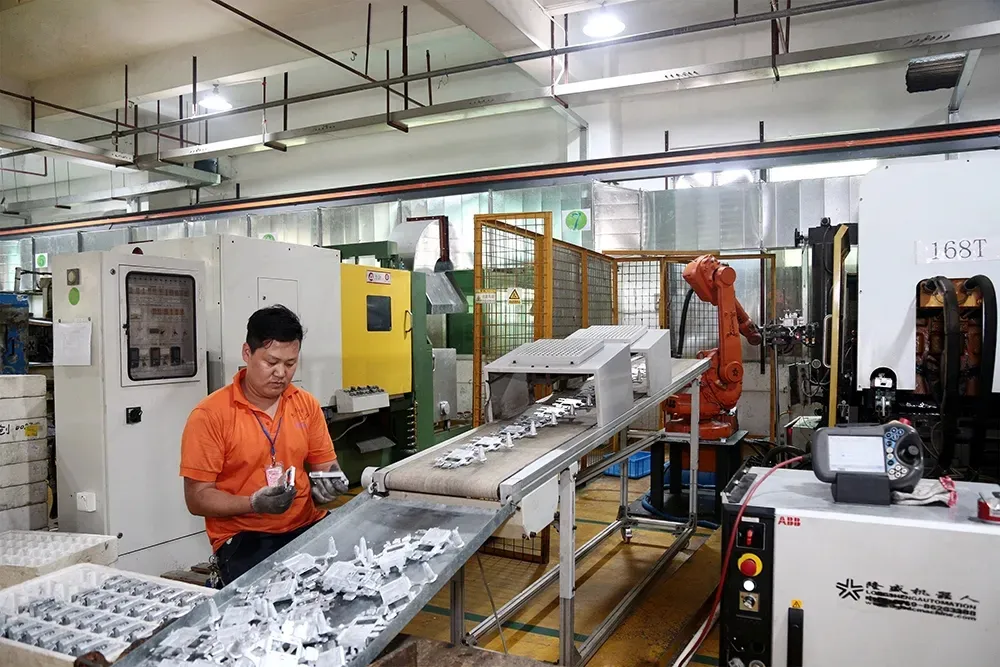

Exceptional Die Casting Services

We excel in providing comprehensive aluminum die casting services. With expertise ranging from mold design, casting, post-processing, to surface treatment and quality inspection, we cover the entire process from genesis to delivery.

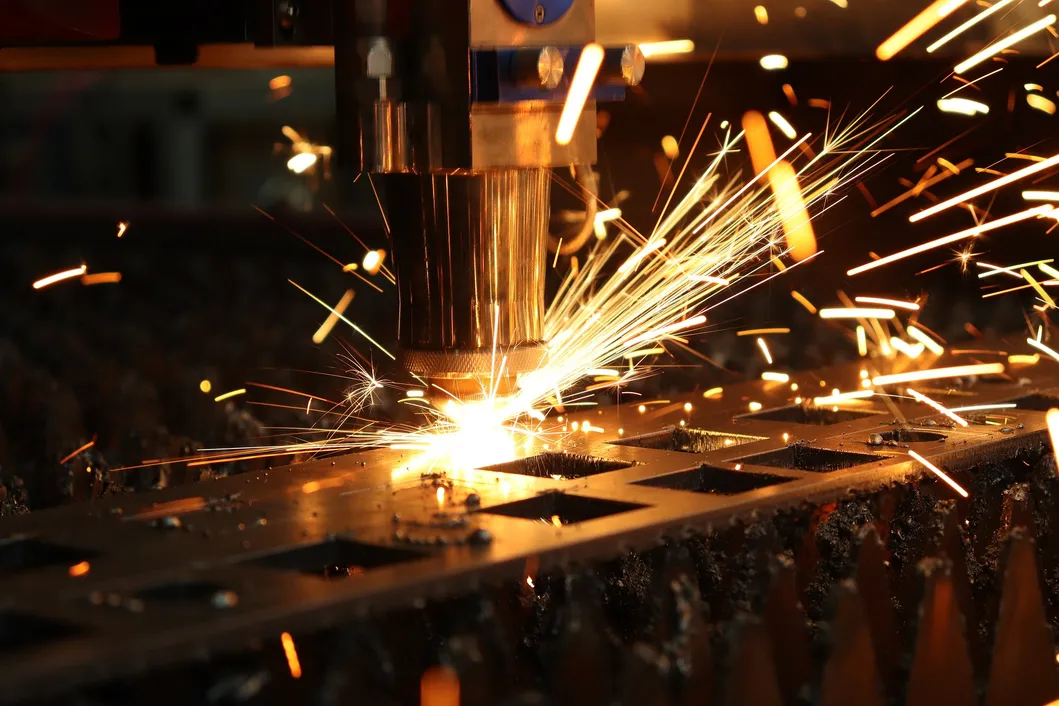

Advanced Sheet Metal Fabrication

We bring a suite of sophisticated sheet metal fabrication processes, including laser cutting, stamping, bending, welding, and surface treatment. These processes are tailored to meet distinctive requirements across various industries.

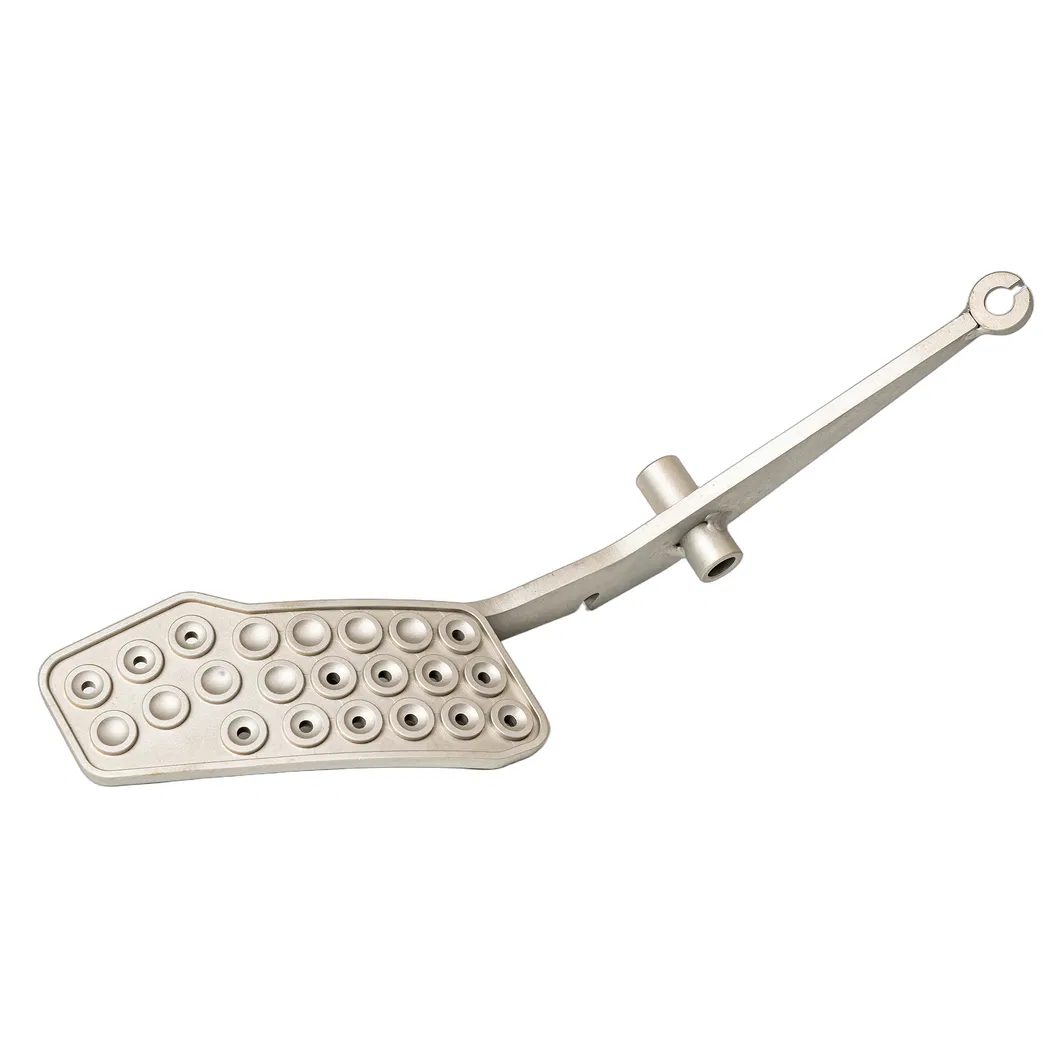

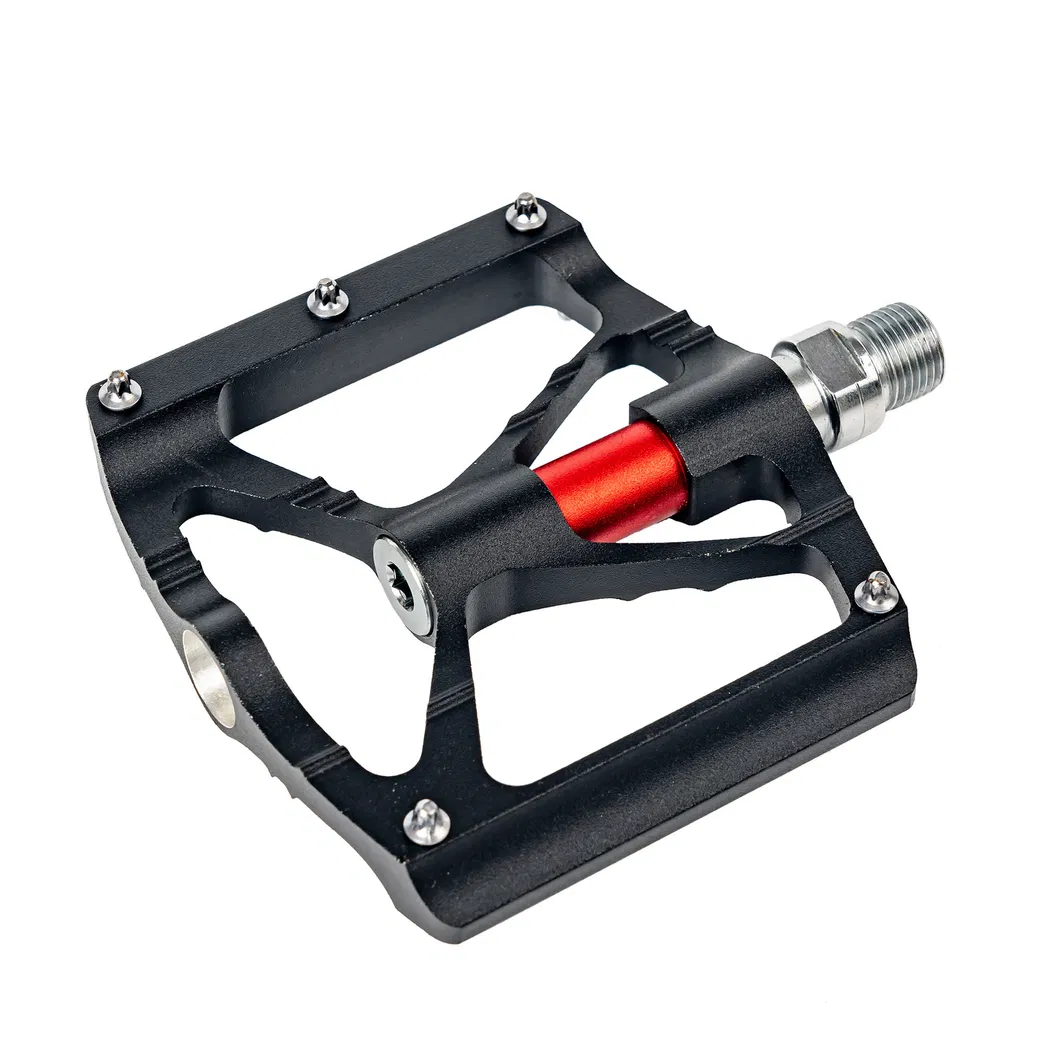

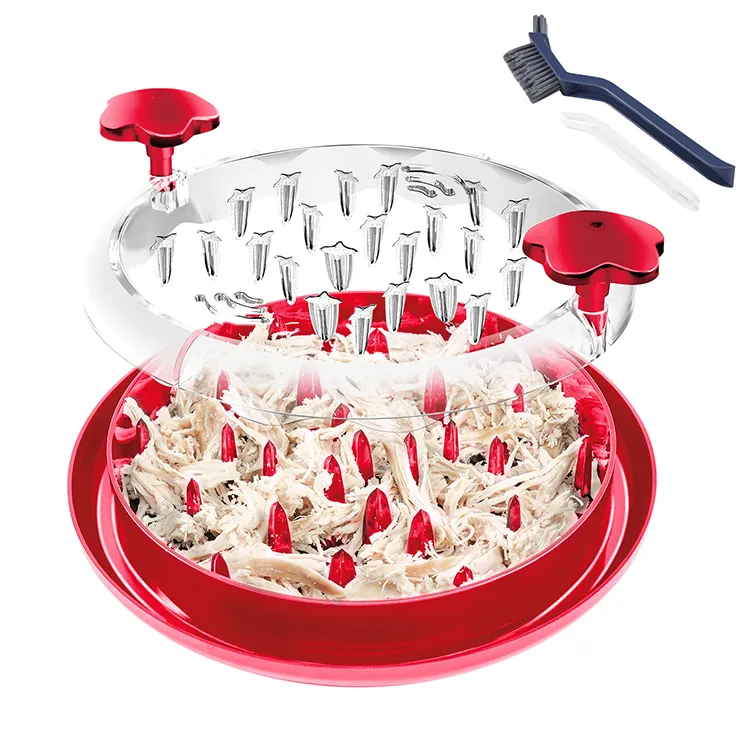

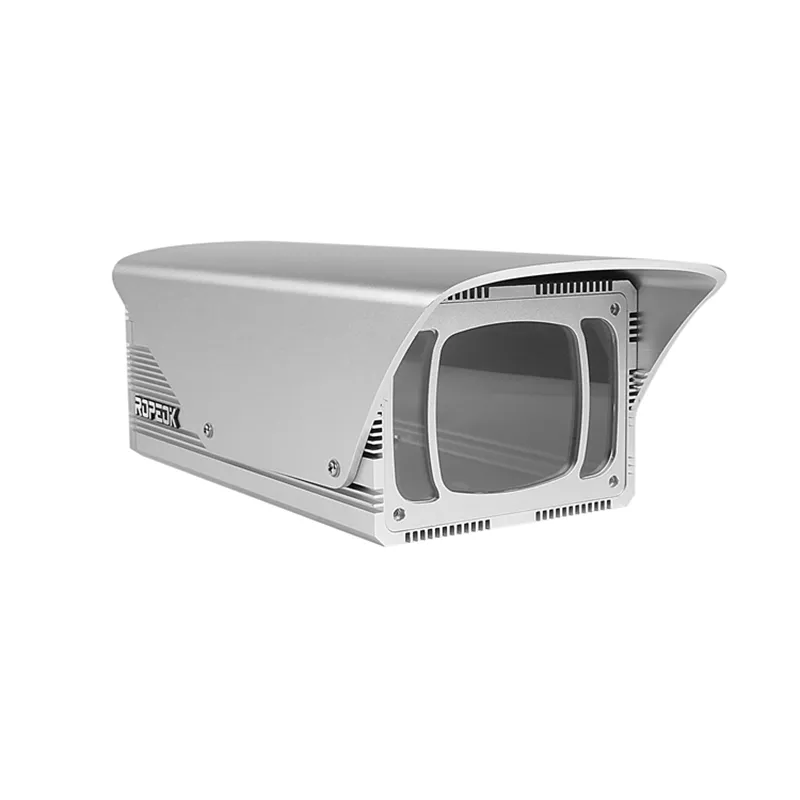

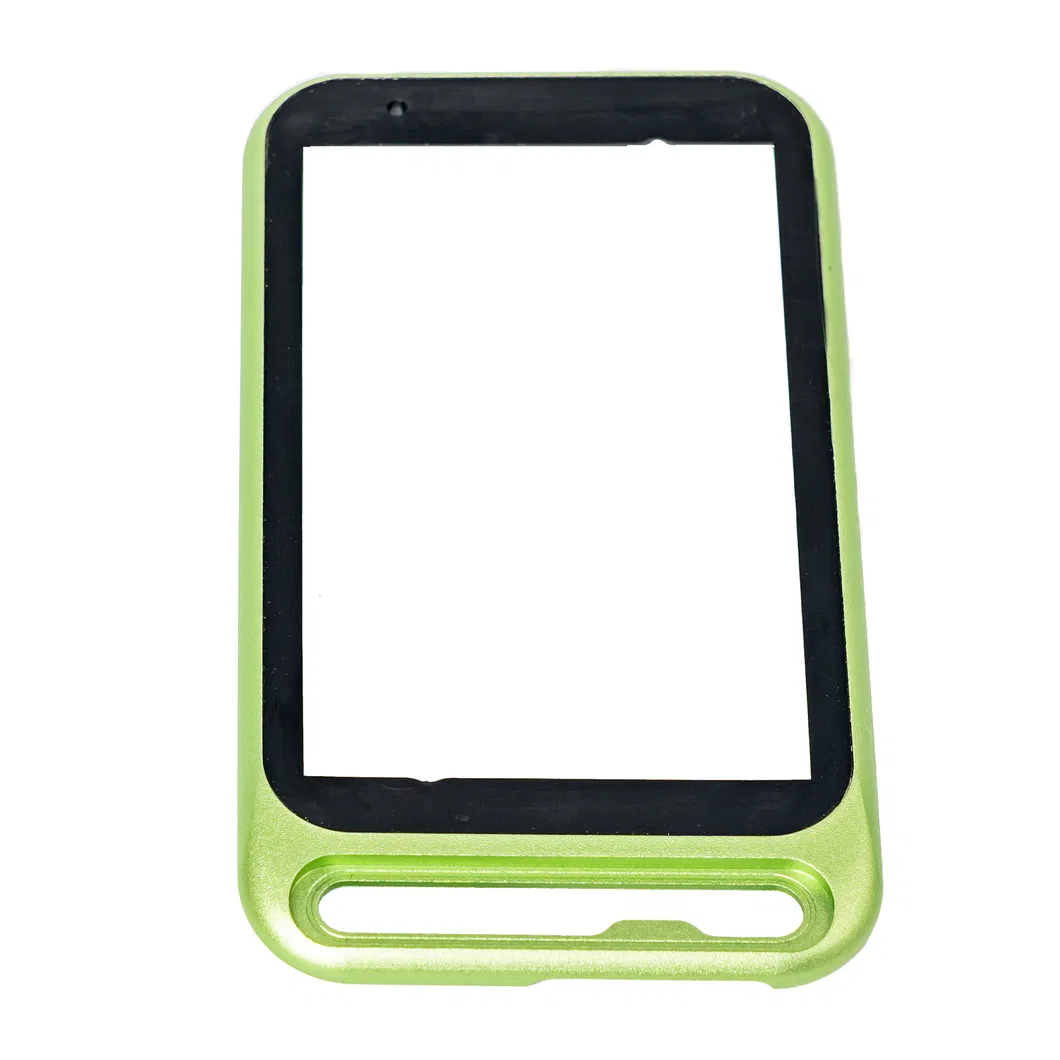

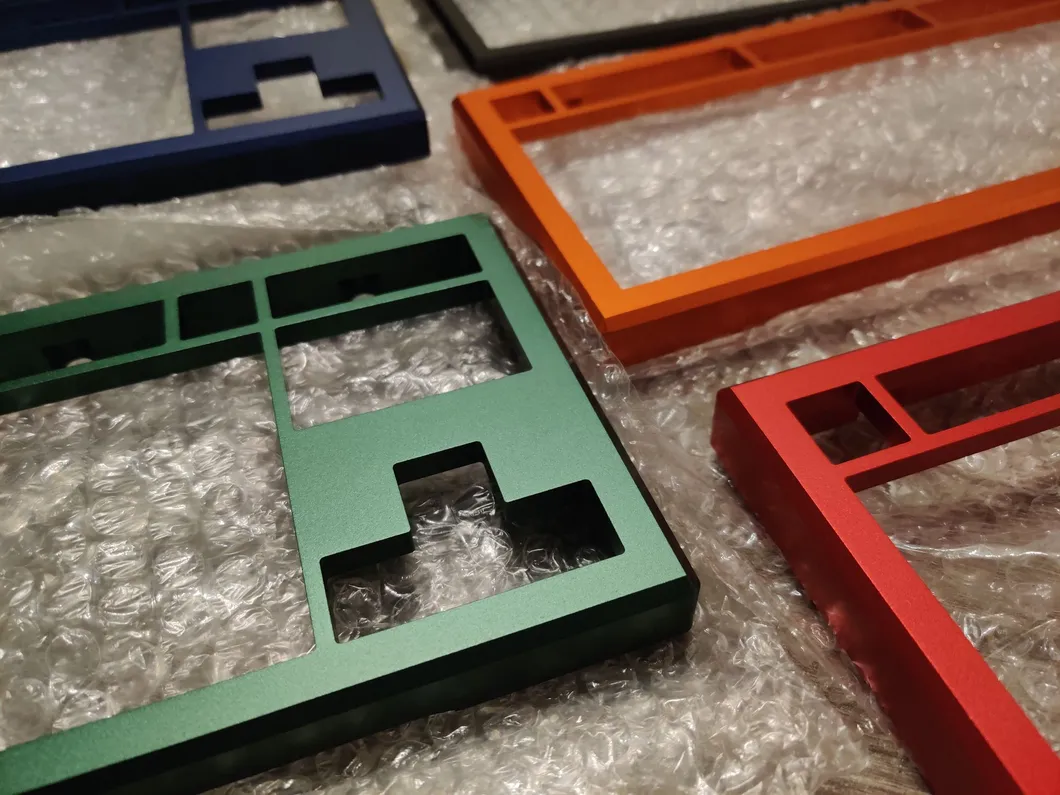

Exemplary Products Gallery

Physical manifestations of excellence, crafted through multifaceted manufacturing capabilities

Technical Specifications

Material Options	1) Aluminum: AL 6061-T6, 6063, 7075-T etc. 2) Stainless steel: 303, 304, 316L, 17-4(SUS630) etc. 3) Steel: 4140, Q235, Q345B, 20#, 45# etc. 4) Titanium: TA1, TA2, TA4, TC4 etc. 5) Brass/Copper: C36000, C37700, C26800, Bronze. 6) Plastics: Delrin, POM, Acrylic, PC, Nylon.
Finishing Services	Sandblasting, Anodizing, Blackening, Zinc/Nickel Plating, Polishing, Powder coating, PVD, Electrogalvanizing, Laser Etching.
Main Equipment	CNC Milling Centers, CNC Lathes, Grinding Machines, Drilling Machines, Laser Cutting Machines.
Tolerance & Surface	Tolerance: +/-0.01mm ~ +/-0.05mm \| Roughness: Ra 0.1~3.2
Working Range	Turning: φ0.5mm-φ150mm300mm \| Milling: 510mm1020mm*500mm

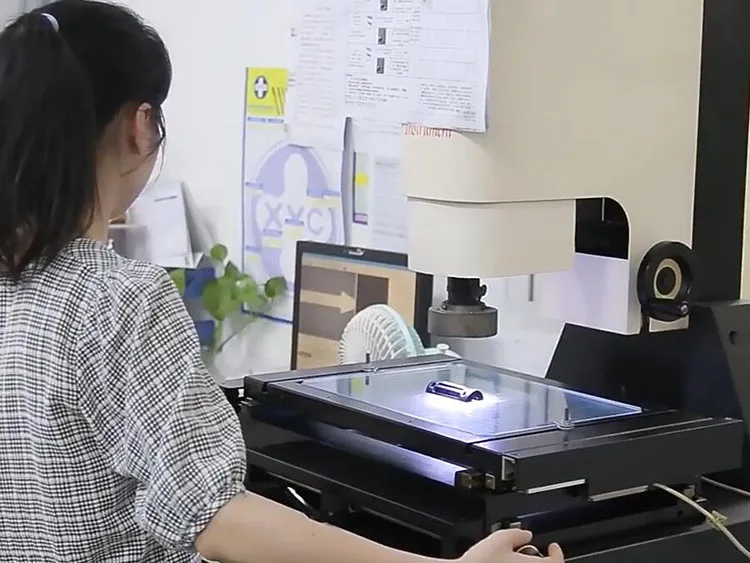

Quality Control & Inspection

Rigorous quality control extends from inception to shipment. Our process includes:

Two independent audits of purchase orders for precision.
Engineering review of manufacturing feasibility for all components.
Documented IPQC inspection programs based on accuracy tolerances.
Meticulous documentation of all special quality requirements.

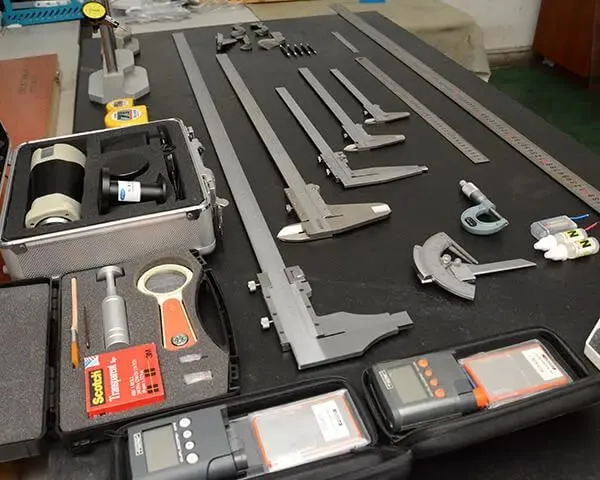

Advanced Inspection Equipment

1. CMM: Measuring range of 800×1220×600 (mm) with MPE of 3.0μm.
2. Marble Measuring Tables: Up to 1200×1000 (mm).
3. Height Gauges: Digital range 0-600 (mm).
4. Micrometers: Inside/Outside sets for absolute precision.
5. Gauges: Full range needle, pin, and thread gauges.
6. Surface Analysis: Roughness meters and hardness testers.

Frequently Asked Questions

What information is essential for obtaining a quote?

Please provide detailed 2D/3D drawings (PDF, DWG, DXF, IGS, STP, etc.), specify the material, desired finish, and quantity to facilitate an accurate quotation.

What is the minimum order quantity (MOQ)?

Our MOQ is flexible and tailored to our client's needs. We also invite trial orders before launching mass production.

What is the standard lead time?

Lead time variations arise based on the project's specifics and quantity requirements. Usually, sample days are within 7 days and mass production takes 15-45 days.

Do you accommodate customized design drawings?

Absolutely! We welcome detailed technical drawings. For optimal processing, sending both 2D and 3D formats is advantageous.

How are quality issues resolved if the products do not meet expectations?

Your satisfaction is paramount. Should any issues arise, contact us promptly with photos. We will engage our engineering and QC teams to resolve the issue as quickly as possible.

Is drawing confidentiality assured?

Yes, your privacy is our priority. We guarantee that your drawings will remain secure and won't be shared with third parties without your explicit permission.
