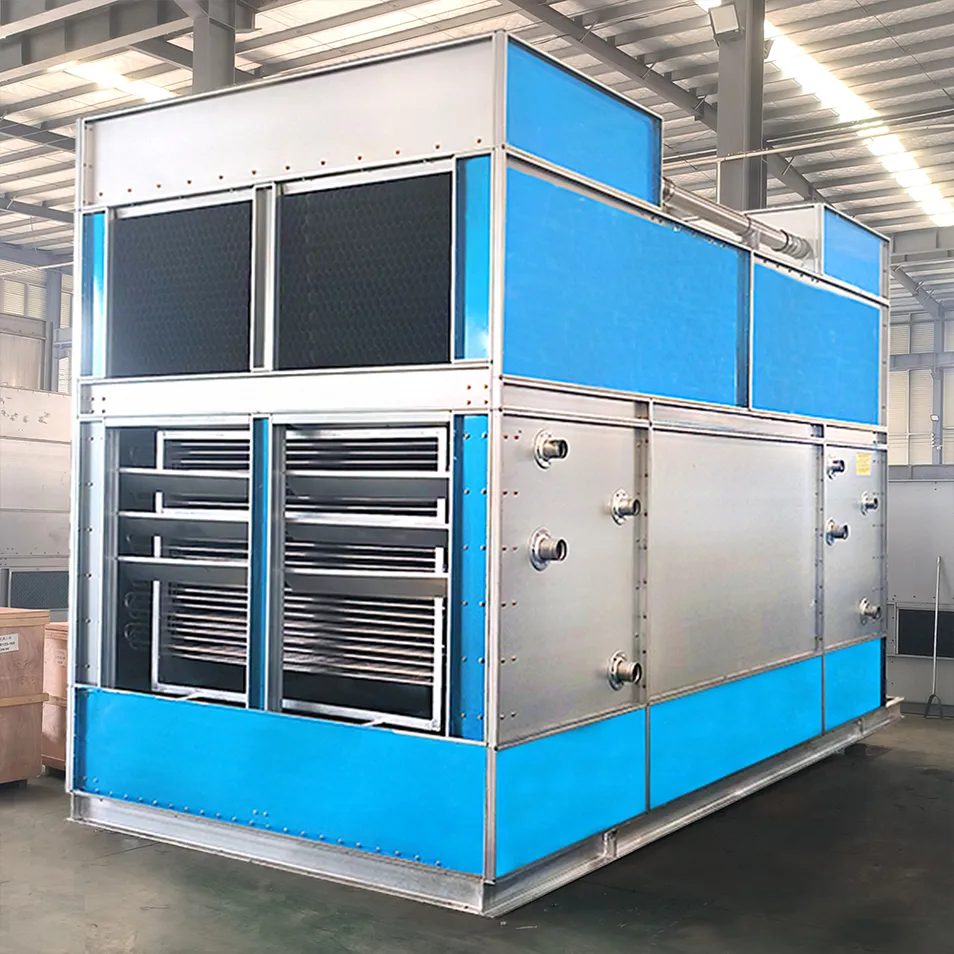

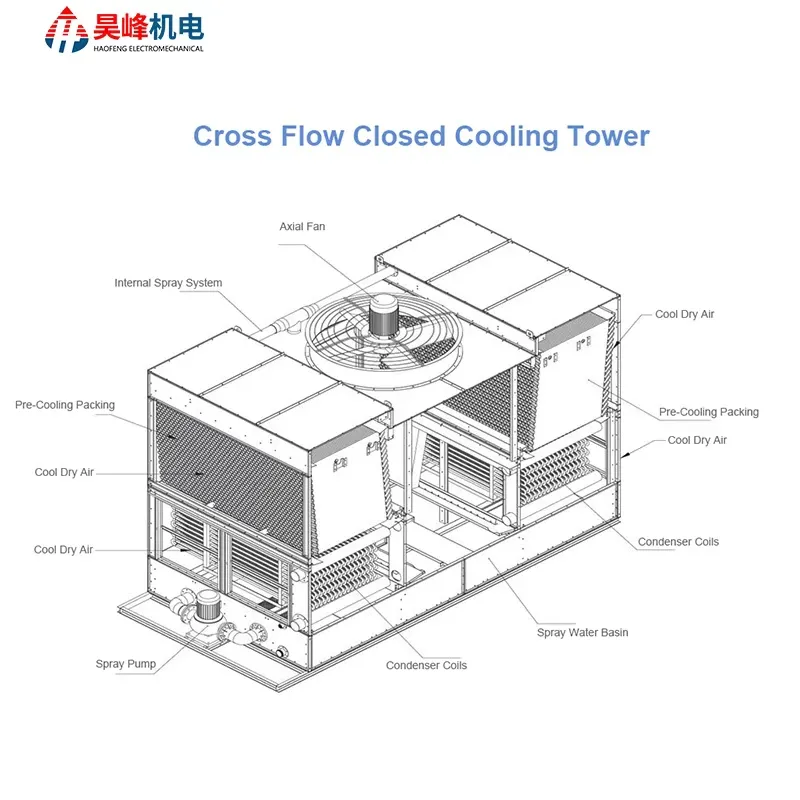

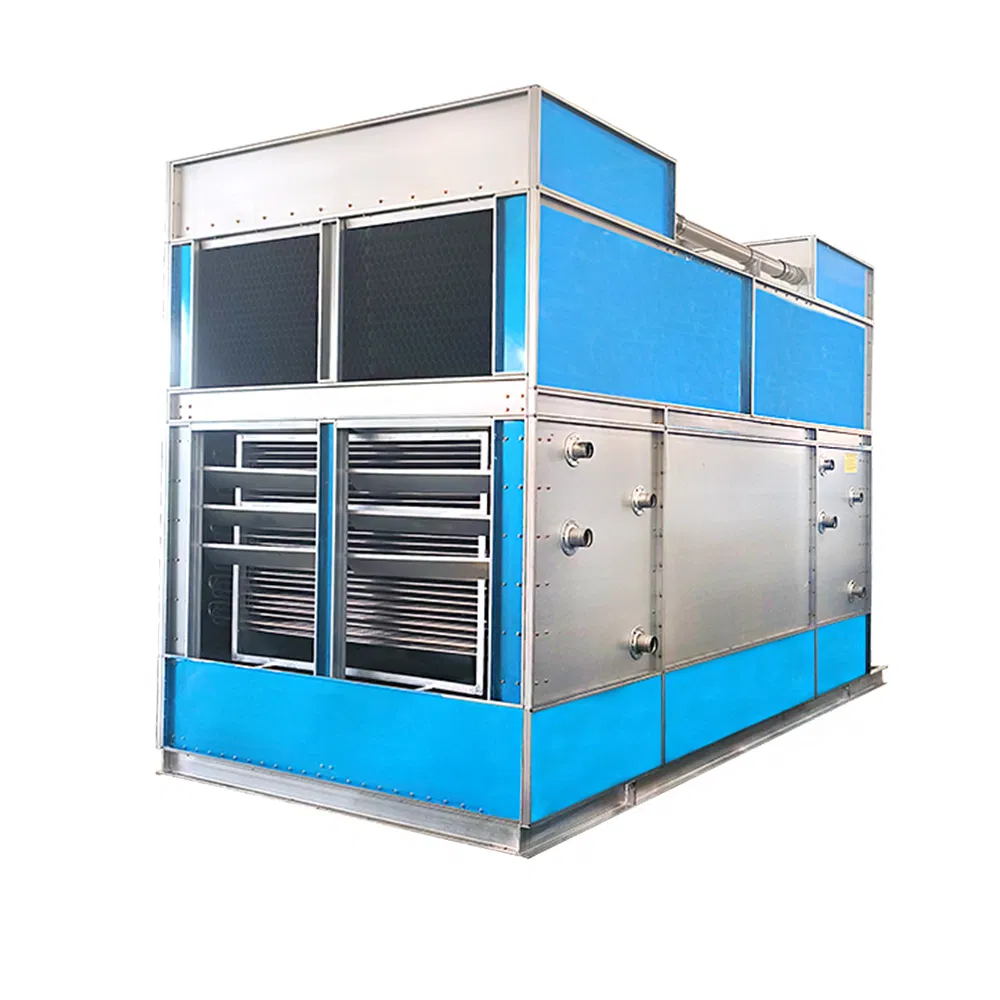

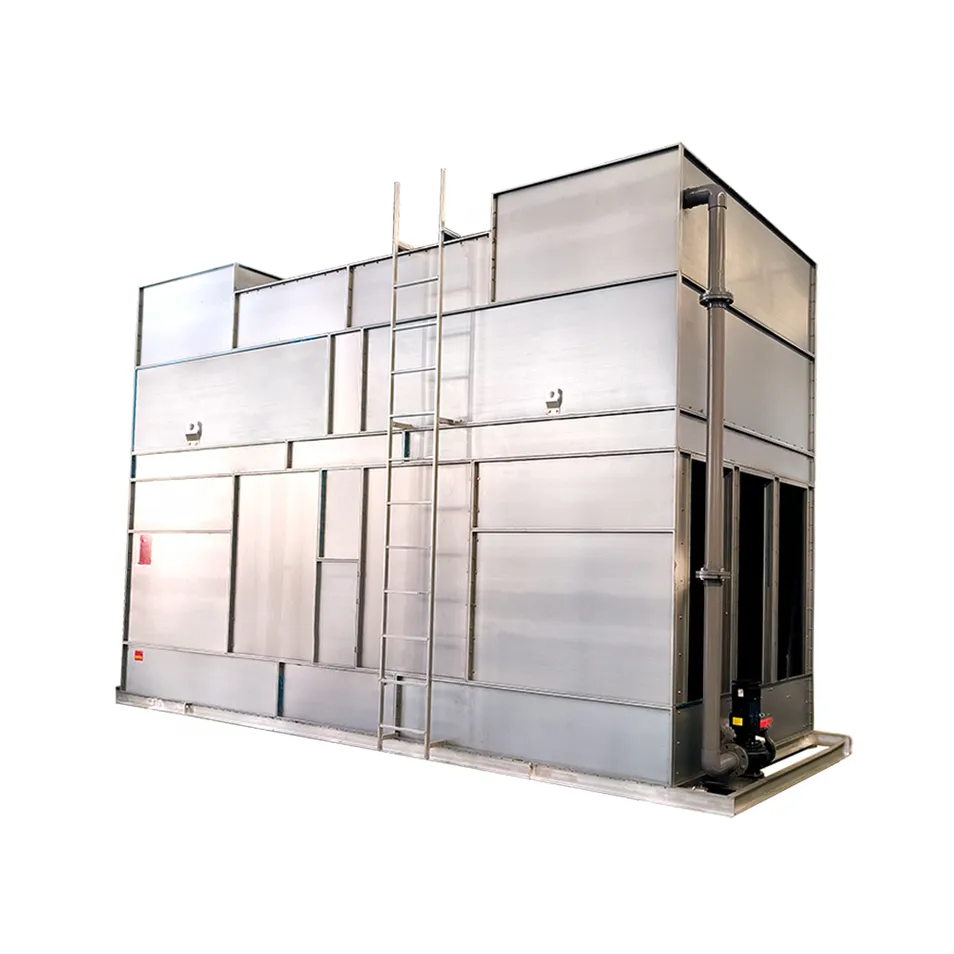

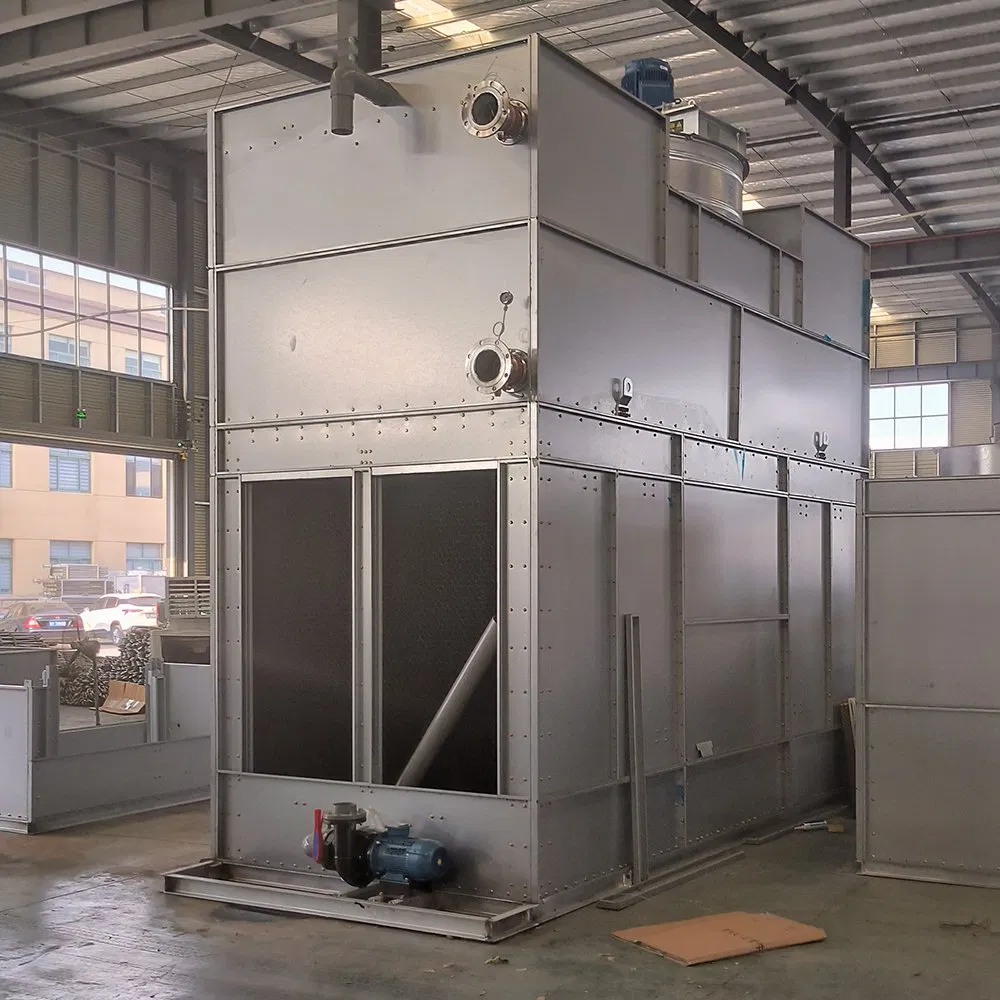

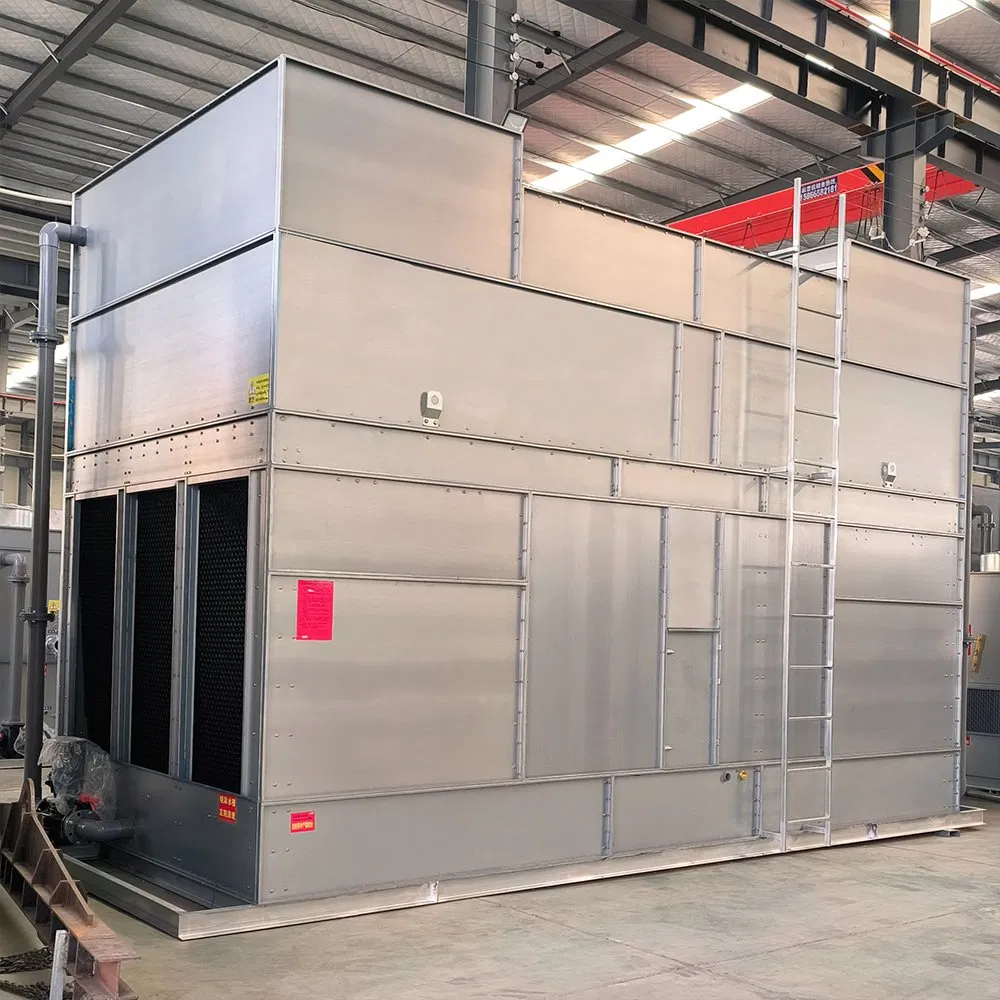

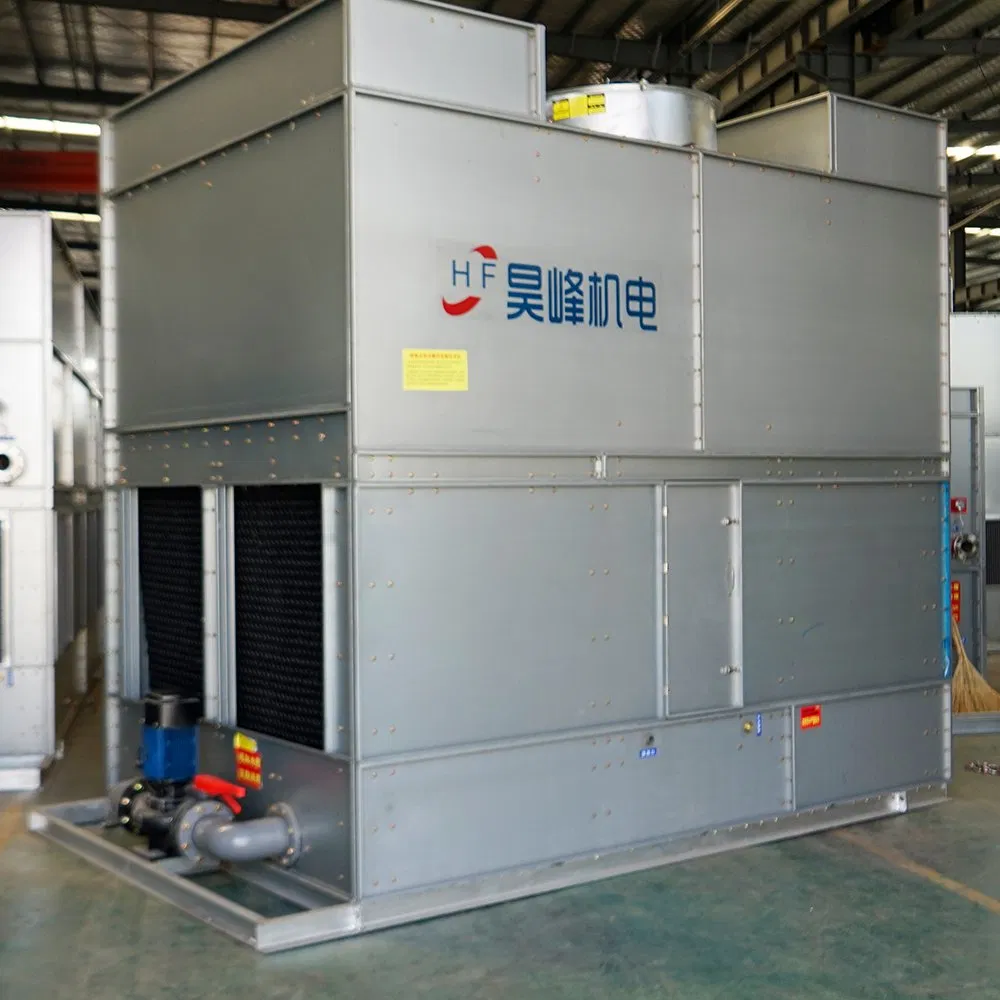

Natural wind enters the cooling tower from both sides respectively through the upper part of the precooling packing and cooler. The air is collected in the middle and flows upward, where the exhaust system vents it out through the top.
The spray pump draws water from the tank and distributes it evenly via the internal spray device onto the pre-cooled packing and cooler. Because the wind flow is perpendicular to the spray water fall, it is characterized as a cross-flow closed cooling tower.
| Model | Cooling Capacity (kcal/h) | Main Pump (kw) | Air Volume (m³/h) | Fan Power (kw) | Fan Dia (mm) | Spray Flow (m³/h) | Spray Power (kw) |
|---|---|---|---|---|---|---|---|
| HFB-H100T | 500,000 | 11*2 | 65,000 | 4 | 1300 | 80 | 2.2 |
| HFB-H150T | 750,000 | 15*2 | 80,000 | 5.5 | 1500 | 150 | 3 |
| HFB-H200T | 1,000,000 | 22*2 | 117,000 | 7.5 | 1900 | 180 | 4 |
| HFB-H300T | 1,500,000 | 37*2 | 210,000 | 15 | 2500 | 286 | 7.5 |
| HFB-H500T | 3,500,000 | 45*3 | 340,000 | 30 | 3100 | 233*2 | 5.5*2 |
The company is a professional high-tech enterprise dedicated to the research, development, design, and production of various cooling systems. With years of technological innovation, we provide stable, efficient, and environmentally friendly cooling solutions for global industrial customers.

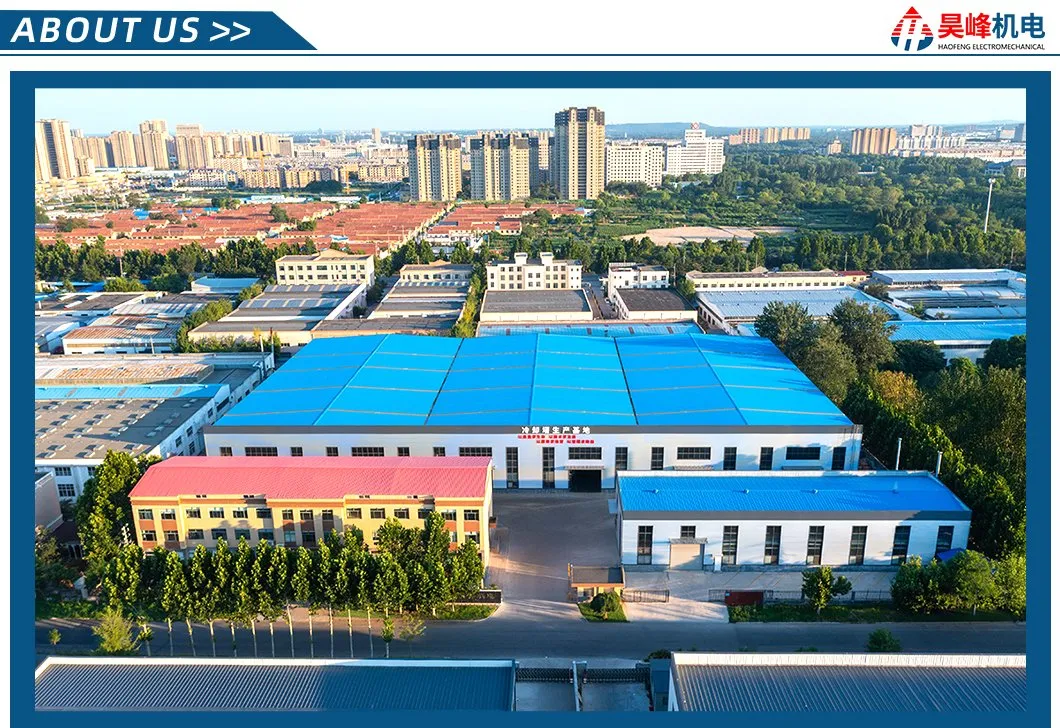

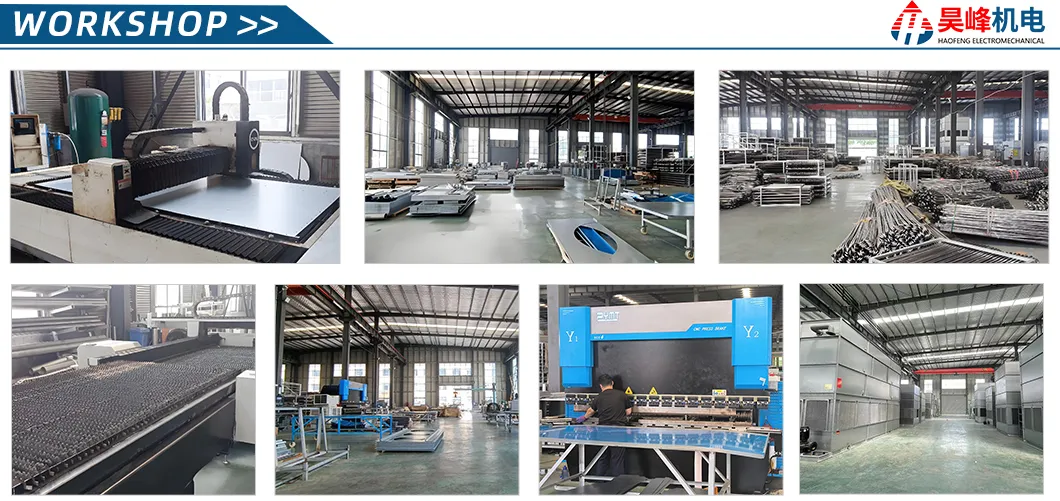

Spanning 36,000 square meters, the facility operates under ISO9001, ISO14001, and ISO45001 systems. Our technical team includes nearly 100 specialists, including senior engineers and technicians focused on heat exchange products such as closed cooling towers and evaporative coolers.
Standard export packaging: robust wooden cases with foam and waterproof film protection to ensure equipment safety during sea freight.
