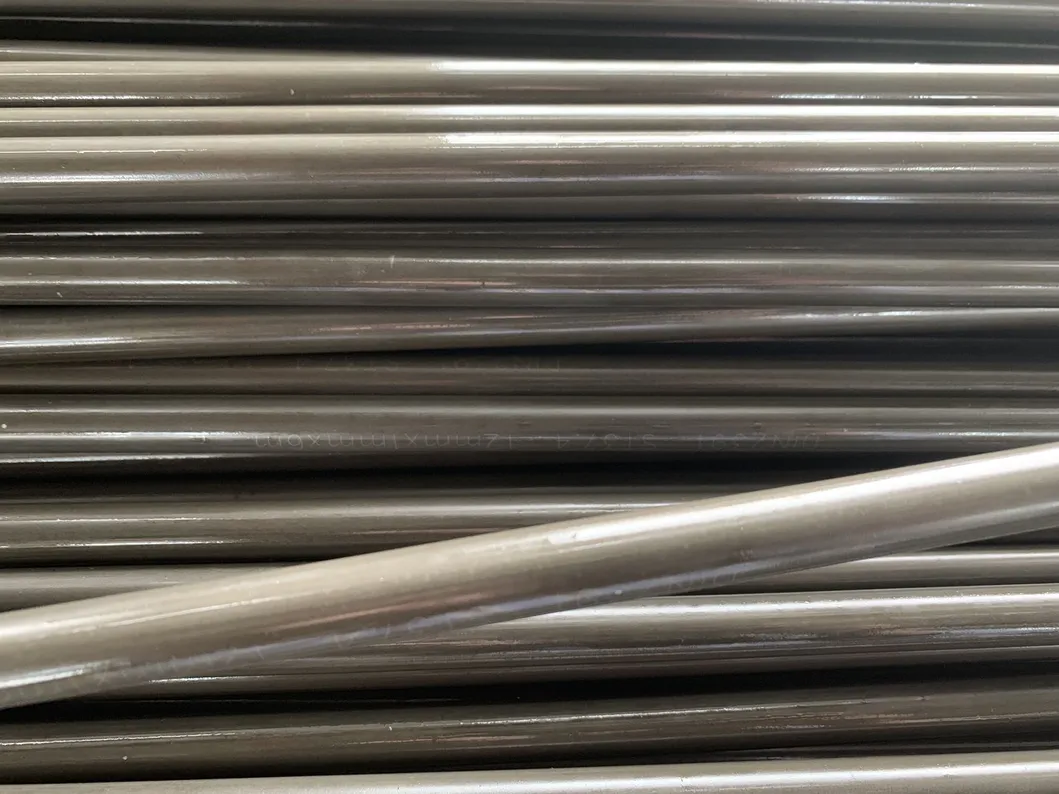

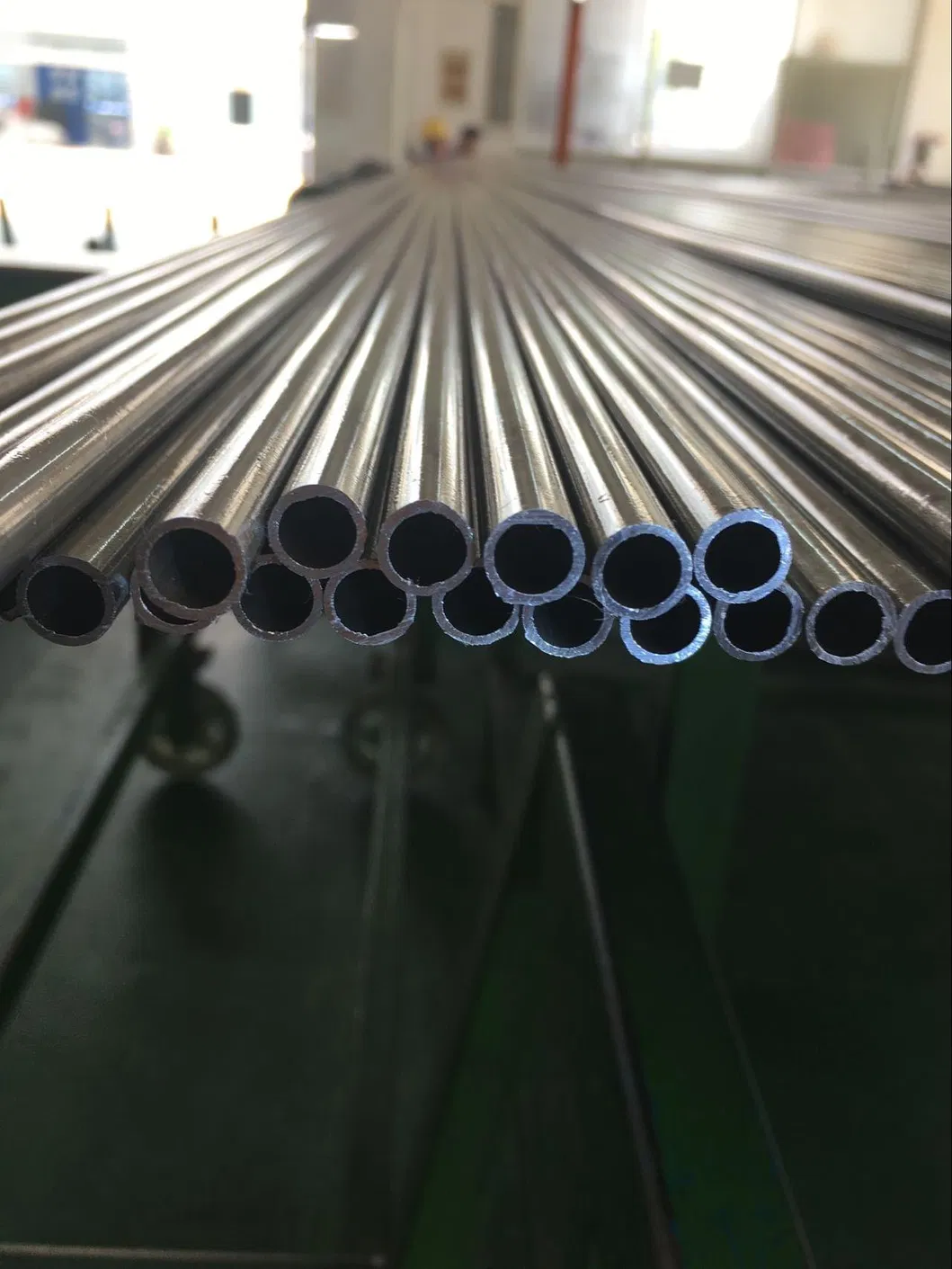

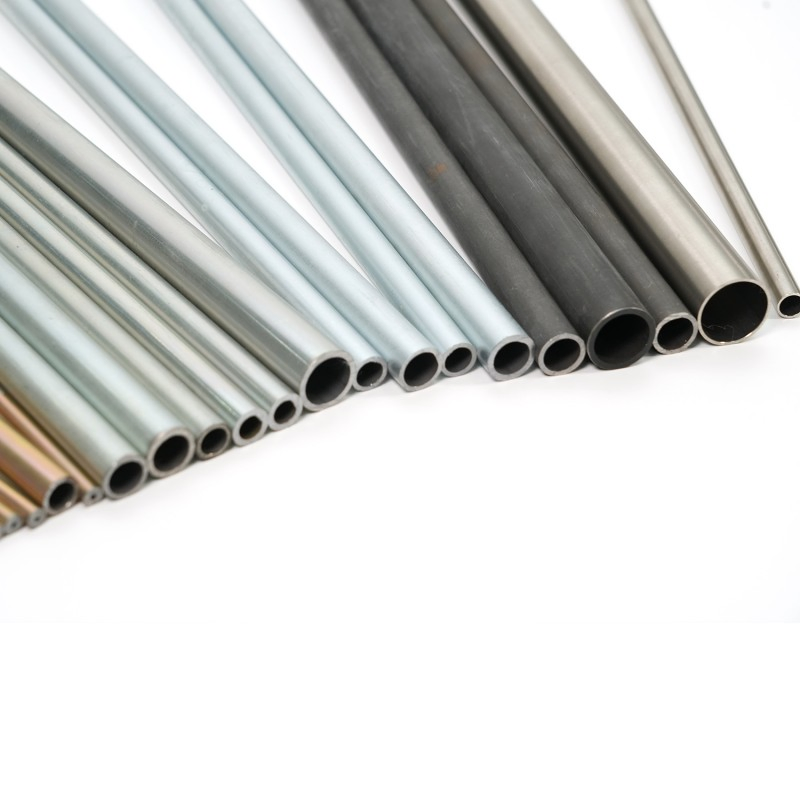

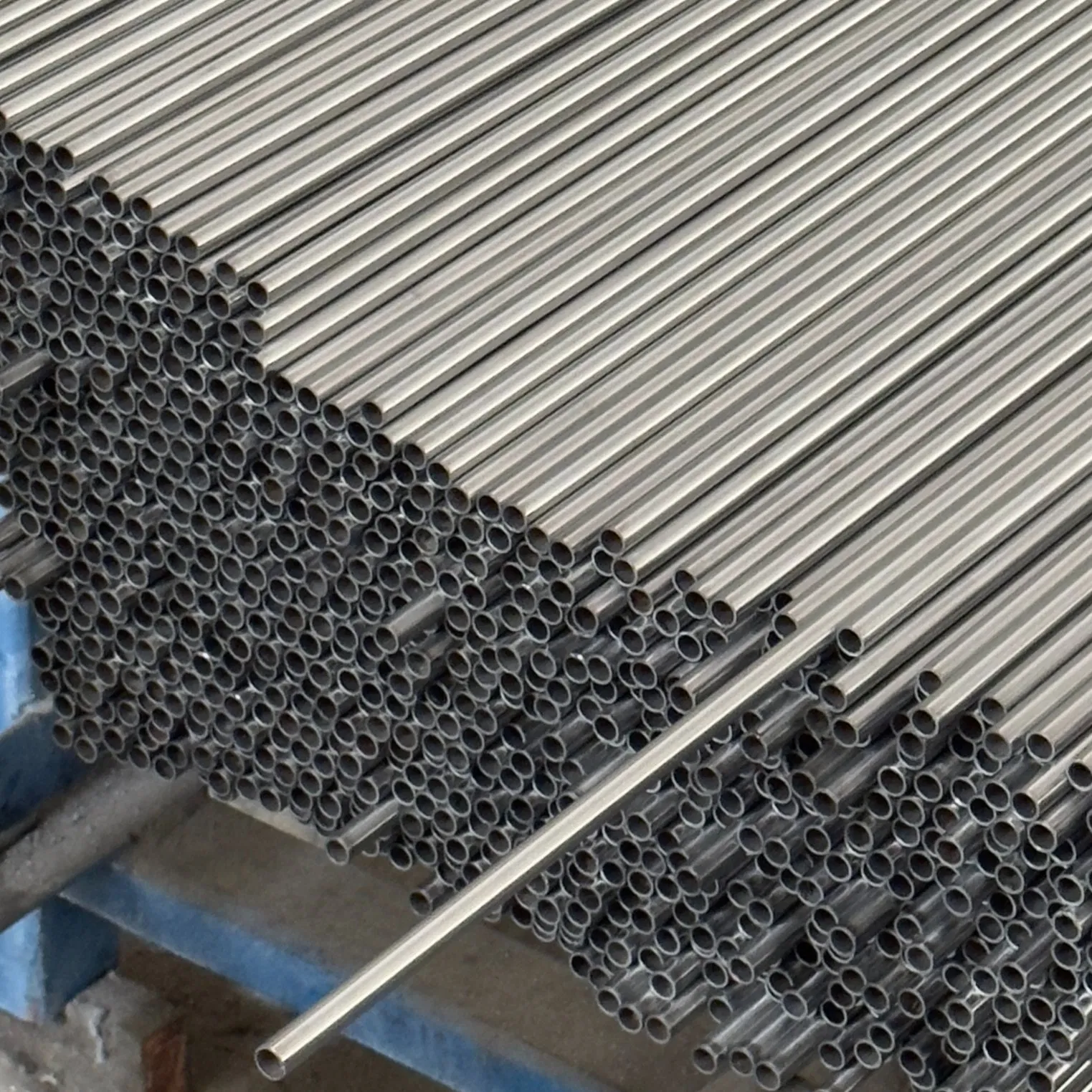

| COLD DRAWN SEAMLESS STEEL TUBE SPECIFICATIONS | |||
|---|---|---|---|
| Standards | Sub-Standard | Steel Grades | Size Range (mm) |
| DIN | 2391 | ST35/45/52 | OD2 - 60 × WT0.3 - 10 |
| 1630 | ST37.4/44.4/52.4 | OD2 - 60 × WT0.3 - 10 | |
| 2445 | ST35/ST52/ST37.4 | OD2 - 60 × WT0.3 - 10 | |
| 73000 | ST 35/45/52/37.4 | OD3 - 30 × ID 1 - 12.5 | |
| EN | 10305-1 | E215/235/255/355 | OD2 - 60 × WT0.3 - 10 |
| 10305-4 | E215/235/255/355 | OD2 - 60 × WT0.3 - 10 | |
| ASTM | A519 | 1010/1015/1025/1045 | OD2 - 60 × WT0.3 - 10 |
Delivery Conditions: BK (+C), BKW (+LC), BKS (+SR), GBK (+A), NBK (+N)
Inspection Items: Tensile strength, Yield strength, Elongation, Flattening, Flaring, Chemical analysis, Eddy Current Test (100%), Size and surface checking (100%)

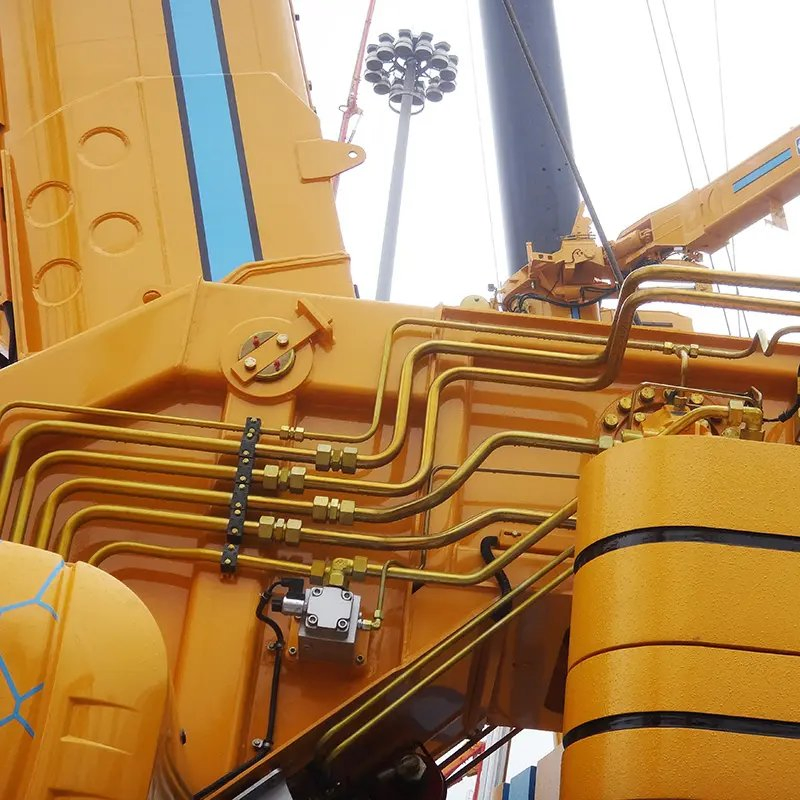

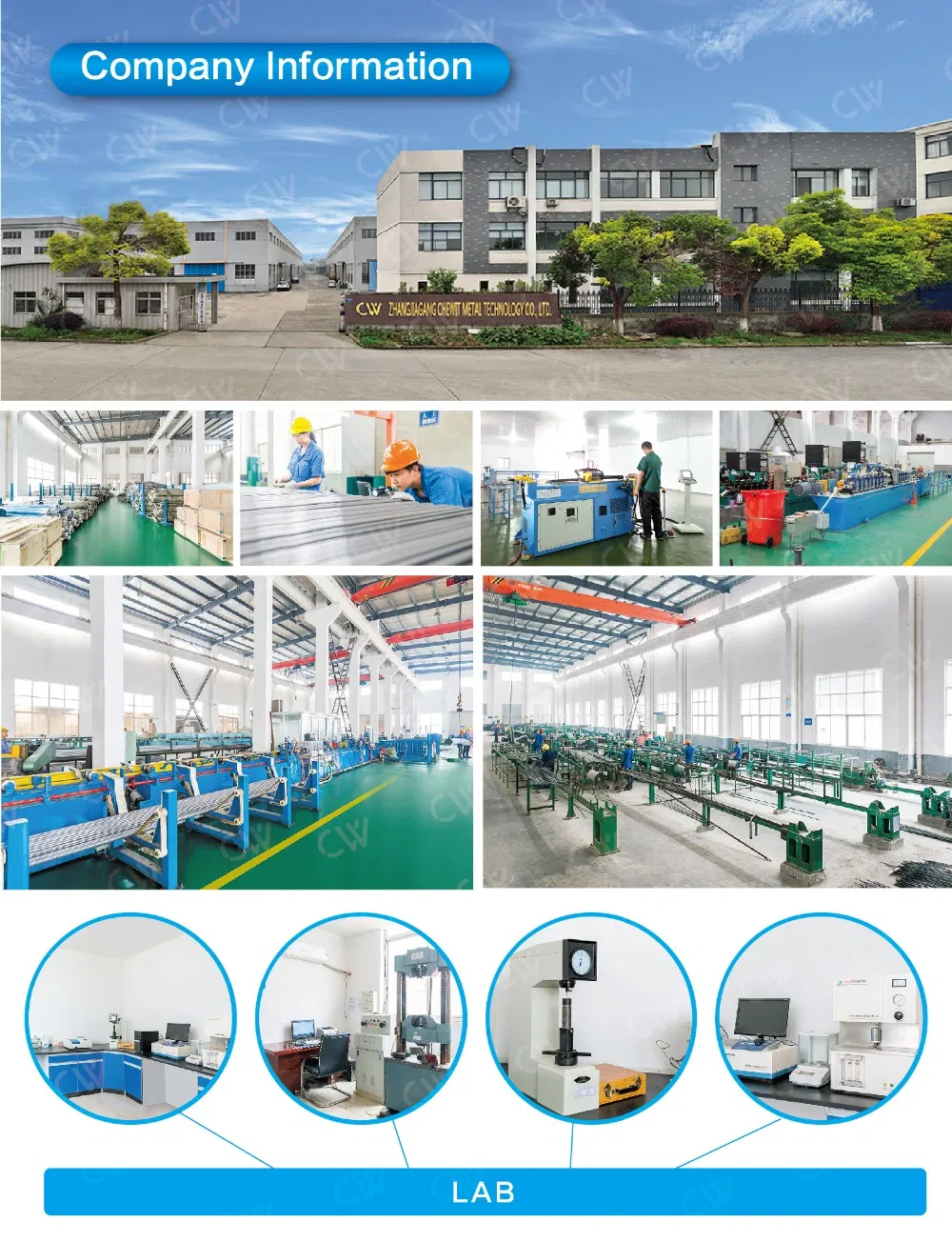

The manufacturing group specializes in high-precision steel tubes for the automotive industry and hydraulic systems. With a total production area of 150,000 square meters and over 200 dedicated employees, the facility ensures top-tier output. Every product undergoes double inspection by professional quality controllers, including vivid reporting for all tested items to guarantee only compliant products reach the customer. Our commitment remains focused on quality-first principles and comprehensive customer service.
